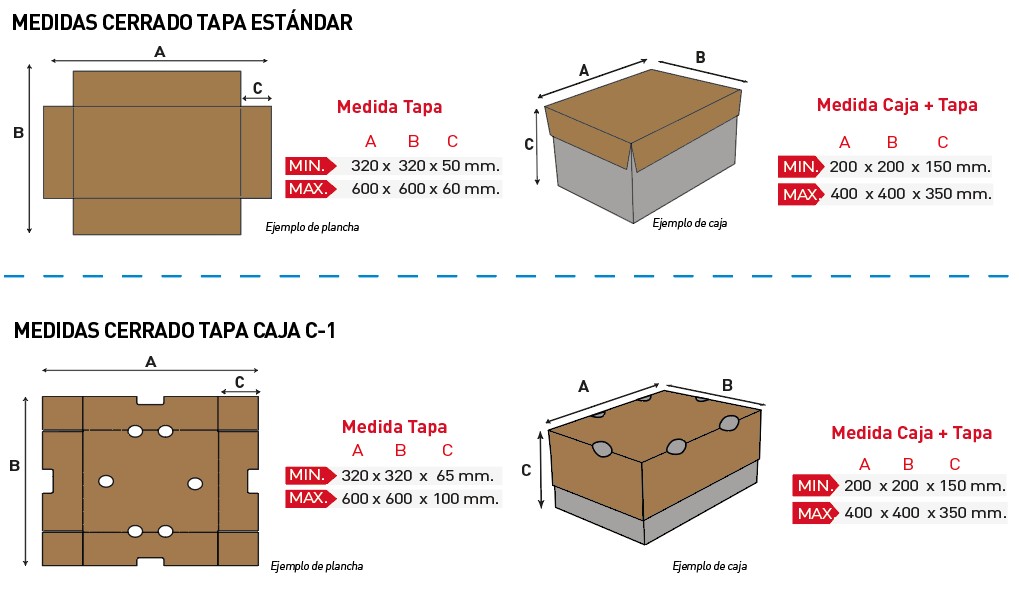

Dimensions Lid to close HAT Mini

HAT MINI

Categories: , , ,

The HAT Mini cardboard box lidder is specially designed for automatic lidding of cardboard boxes using Hot-Melt, ensuring a perfect seal for the boxes.

This model offers the following advantages:

  • Estimated production of up to 1,300 lids per hour.
  • Improves productivity and optimises the production line.
  • Protects your products from damage, theft and/or contamination.
  • Small size and low maintenance machine.



Contact:



Description

HAT Mini is a cardboard box lidding machine, specially developed to lid boxes of different heights. The difference with the other HAT machines lies in the size of the cartons it can handle, as it can lid cardboard boxes up to 190 x 190 x 70 mm in height. The main advantage offered by these machines is that by closing or lidding boxes with Hot-Melt, they help prevent multiple issues with your products, such as deterioration, contamination, theft or loss.
  • High Production can reach up to 1,300 boxes/hour.
  • Operation: it has servos to control the movements.
  • Lid Storage: 1.5 meters (high working autonomy).
  • Flexible: It can lid different types of boxes (Bliss or C-1).
  • Glue time: adjustable from the machine screen.
  • Adaptable: designed for integration with production lines.
  • Especially used in sectors such as cherries, meat, cosmetics, winery and e-commerce.

Additional information

Operation

Mechanical, Electrical and Pneumatical
Glue System

Glue Injection, Hot Melt (Nordson o Melton)
Box Design

Cover Bliss and C-1 Boxes
Production

Up to 1,300 boxes/hour
Total Power

10.5 Kw.
Electrical Supply

380/220 V (3F+N+PE) – 50/60 Hz
Net Weight

1,900 Kg.
Electrical Supply

Vacuum
Working Air Pressure

7 BAR (7 kg/cm2)
Air Consumption

600 l/min.
Machine Frame

4mm Steel plate

Boxes Types

  • HAT boxes
